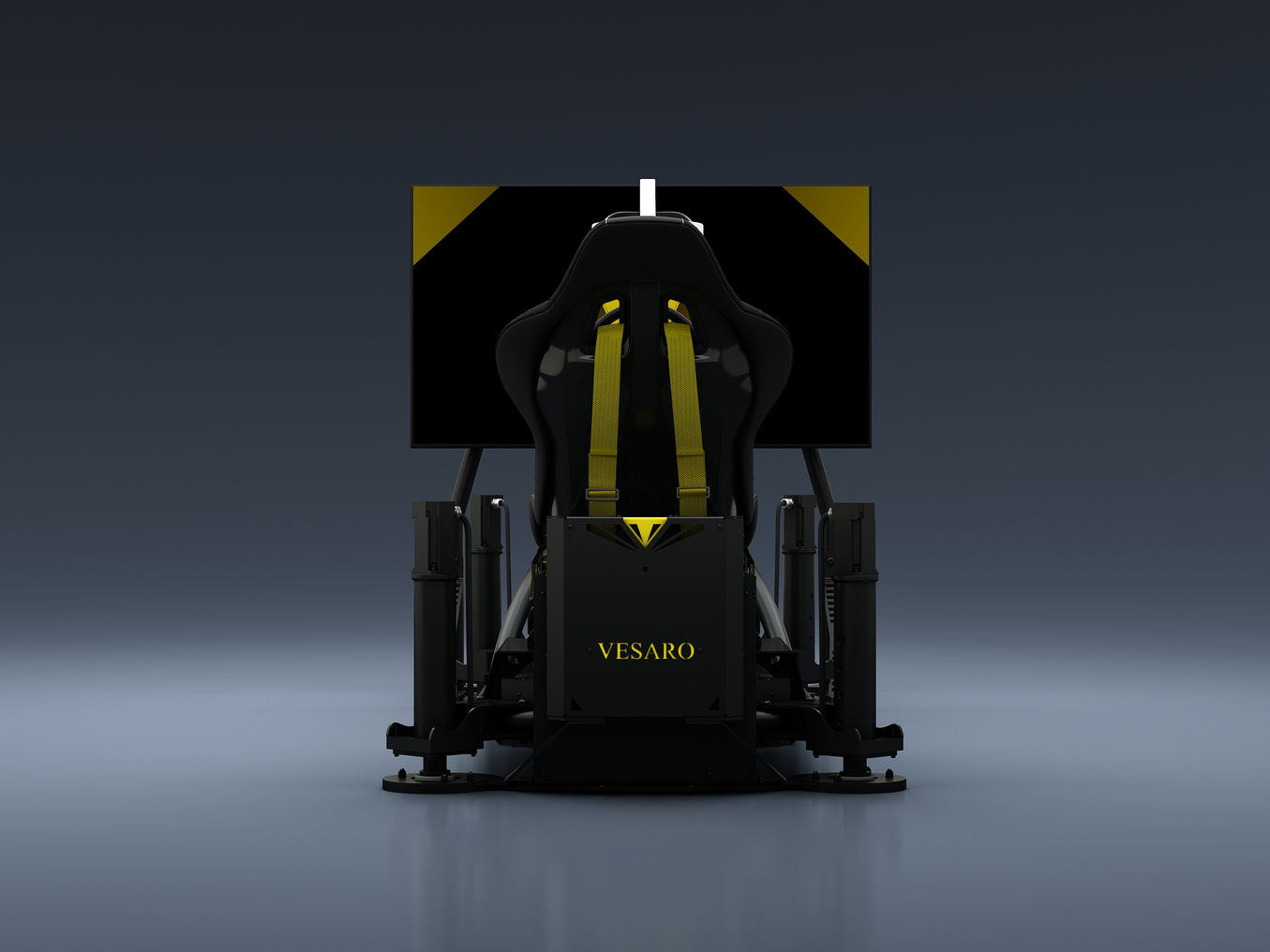

Vesaro I Chassis

Our Vesaro I Chassis serves as an ultra strong, hand-crafted center core, designed to support an advanced modular upgrade system, allowing for thousands of possible combinations. This flexibility made Vesaro Simulators the world’s first truly modular industrial strength simulation system.

Starting with our dynamic chassis, the complexity of a Vesaro system can be altered over time, evolving with the needs and requirements of the user.

As a company, we believe that a simulator should last, and our manufacturing process is designed for just that.

The Vesaro I Chassis is made from high-quality, ultra-durable mild steel, enabling us to confidently offer a 10-year warranty on all metal framework.

The central core rig is built with full motion capability in mind. This approach means that our starting static system can be upgraded to support full motion and a host of various controls and modules.

Everything you see on our systems stems from our incredibly capable Vesaro I Chassis.

Vesaro GTF Conversion Kit

The Vesaro GTF Conversion Kit is a transformative solution for both the Vesaro I & X chassis’.

This kit serves 2 functions.

Firstly, it raises the pedal deck, providing a more GT/Formula resting position for the user’s feet. This increases authenticity for GT and Formula driving disciplines, and provides more comfortability for longer driving stints.

Secondly, it forms a large storage space on the Vesaro chassis’, enabling us to integrate more components and electronics onto the framework, greatly reducing clutter around the simulator.

Pedal deck adjustability is retained, enabling the user to angle the pedal deck and its distance to their preference.

Vesaro G-Force Tensioner System + Harness

Our Vesaro G-Force Tensioner System + Harness introduces eye-opening braking G-Forces when sim racing.

Working passively in conjunction with any of our available motion systems, when the chassis pitches forward after a braking input from the user, a proportional amount of compression is applied down the their chest.

The accuracy and visceral sensation of the braking G-Forces experienced on our systems greatly aids the user in controlling the amount of braking they apply.

Beyond the incredibly accurate training advantage this system provides, it also amplifies the general experience of driving on a Vesaro simulator, making it a phenomenal option for entertainment purposes.

Requires a Vesaro motion system module for the G-Force effect to function. The Vesaro G-Force Tensioner System + Harness can be used as an aesthetic and authenticity addition without any form of motion, or it can be added with the intention of upgrading the system to utilise a motion module in the future.

Most effective with 3 inch and 6 inch motion systems.

Corbeau Sprint X

The Corbeau Sprint X is an ergonomically designed seat, providing exceptional lateral support and comfort, crucial for extended periods of virtual racing.

Used in the world of Motorsport, this seat is FIA approved and a great representation of a typical track car.

A seat should be strong and rigid in order to support the driver’s applied forces from braking, and any sustained G-Forces from motion. The Corbeau Sprint X is comprised of formed GRP, greatly reducing any form of flex, even under 100 + kg brake loading.

Supports up to a 34” waist. A 34” + waist variant is also available (Corbeau Sprint X XL).

Pro Controls Wheel Base - Simucube 2 Pro

The Pro Controls Wheel Base - Simucube 2 Pro exemplifies performance, quality and reliability.

25 Nm of torque is produced by this industrial grade motor, without a single hint of notchiness or rippling. This ultra smooth and consistent delivery of force feedback enables the user to train consistently on a Vesaro system, with full faith in the feelings and sensations that they are experiencing.

The build quality is second to none. Its rigid metal construction, expertly wired and grounded internals and finely CNCed quick-release system make this the perfect choice for private and commercial users alike.

The consistency and accuracy offered by the Simucube 2 Pro sets an incredible foundation for the included True Drive software.

Many effects and setting sliders are available to the user within the True Drive software, all of which can be finely adjusted to create near perfect representations of real vehicles. These can be saved to individually named profiles, which can be switched between in a matter of seconds, so that the user can have a dedicated profile for every vehicle they wish to train, in every scenario.

Vesaro configures all steering settings at HQ in a preset profile, so there is always a ready to use profile preloaded with our preferred settings, that work great with the Vesaro system.

Pro Controls V-Spec GT Wheel

The Vesaro Pro Controls V-Spec GT Wheel is a robust and minimalist steering wheel designed for professional sim racing and commercial sim centers.

Constructed with a high-quality OMP racing rim and adhering to Pro Controls' renowned V-Spec quality, this wheel features a durable and ergonomic design, ideal for extended use from demanding users.

While primarily designed for simplicity, it does include 4 programmable buttons for essential functions or user preferences. This minimalist approach makes it perfect for sim centers and private users who do not want in-game distractions that are not necessary. This design also caters to users who would prefer to use our Vesaro Manager for more intuitive and expansive control configurations.

High-end carbon paddle shifters with magnetic switches deliver a precise and responsive gear-changing experience with exceptional durability and longevity.

Supplied with a quick-release attachment for prompt connection and disconnection from the Vesaro system.

Pro Controls V-Spec Hydraulic Pedals (3 Pedals)

The Pro Controls V-Spec Hydraulic Pedals (3 Pedals) offer a fully adjustable, consistent and reliable racing experience.

Whether they will be used for demanding private racing, or intense commercial eSports, these pedals are more than capable of supporting high-performance use-cases.

Produced with robust engineering and precise components, resulting in accurate input translation via high-fidelity load cell sensors. The brake pedal is capable of registering up to 140kg of force at the pedal footplate.

The accelerator has a smooth and accurate response due to its 1-way hydraulic damper, offering excellent and consistent control.

The dual stage brake system consists of an initial coil spring, simulating initial travel, and custom elastomers that simulate progressive braking from high-performance braking systems. It also features a 2-way hydraulic damper, replicating the feel of real brake assemblies. With 9 resistance settings, the brake can be fine-tuned from soft to firm.

The clutch pedal features a regressive spring mechanism to simulate a typical concave clutch curve, offering a realistic feel and response. It also features a 2-way hydraulic damper, replicating the feel of real clutch assemblies. The clutch offers adjustable pedal resistance, travel, and feel.

Physical adjustments can be made to the pedals directly, to alter the angle of rest and leverage that can be applied.

Furthermore, beyond the physical adjustments, refinements can be made virtually in dedicated Heusinkveld SmartControl software, fully controlling the registered output value of input force and its corresponding curvature.

Vesaro PC Level 5

Our Vesaro PC Level 5 is designed and produced in-house. We created this bespoke PC from the ground up to work natively with our Vesaro systems, in order to control the entire system in a sleek and fully on-board solution.

All of our PC levels are able to run Single Screen, Triple Screen & VR. Each level will increase the performance of each game and the settings achievable, such as graphical fidelity and animation features.

The Vesaro PC Level 5 is fully configured from Vesaro HQ, with all compatible software for all included components on the system. All systems are set to run at 60 FPS minimum.

No setup is required from the user. In any instance where setup is required due to software updates, our dedicated Vesaro Support Team can remote access the system (with prior permission) to completely fix or aid in resolving issues.

Specification:

Motherboard - Gaming Motherboard with Wifi

Processor - Intel Core i9 14900 or AMD Ryzen 7 9800X3D

CPU Cooler - Low-Profile Air Cooler

32 GB RAM 4800MT/s DDR5

Power Supply - 850W Gold (minimum)

Graphics Card - Nvidia RTX 5080

Storage - 1TB Gen 4 NVME Drive

Case - Vesaro Node

Drivers installed & Configured for all included control systems

Control systems configured & setup for all included games/sims

Graphics optimised and tuned for optimum frame rate & quality for any included games/sims

Full image backup to an external Drive, allowing full software restore to the day the system was finalised

2 Year Parts & Labour RTB Warranty (Private Customers) 1 Year Parts & Labour RTB Warranty (Commercial Customers)

(PC Specs last updated 10/02/2025)

Single Display Screen 55 Inch

Experience expansive and engaging visuals with the Single Display Screen 55 Inch, designed to enhance any Vesaro gaming or simulation system with a truly large and immersive display.

Key Display Features:

Large 55-inch Screen - Expansive and immersive viewing.

Vibrant Colour and Clarity - Engaging and detailed visuals.

Display Specifications:

55-inch Display - Large and detailed visuals.

Ideal for Racing & Flight Simulation:

Racing Titles: Large display size maximizes the sense of scale and immersion in racing simulations.

Flight Simulation: Expansive screen area provides a truly wide and encompassing view for immersive flight experiences.

Please note: Exact specifications are subject to change. Please get in contact with our Sales Team for more information.

Single Display Stand

Our Vesaro Single Display Stand takes design cues from the Vesaro I Chassis and incorporates them into a strong, adjustable and presentable display stand solution.

Supporting screen sizes from 27” to 100”, the Vesaro Single Display Stand can showcase essentially all commercially available screens on the market.

Our supporting brackets ensure that a vast range of screens with varying VESA mounts are compatible.

We have 3 bracket types that support the listed display sizes for mounting. New brackets can be created upon request:

Small Adaptor Plate

100 w x 100 h

100 w x 130 h

Medium Adaptor Plate

200 w x 100 h

100 w x 200 h

200 w x 200 h

Large Adaptor Plate

400 w x 400 h

Built-in adjustability creates flexibility within the Vesaro Single Display Stand, enabling fine calibration for it to sit at the desired height on a range of various systems.

Different motion systems will determine the height at which the screen has to sit, in order to achieve the ideal eye-line, and to avoid any conflicts between the Vesaro simulator and the screen.

The Vesaro Simulator can be bridged over our Single Display Stand, enabling the user to achieve a better in-game field of view, and to reduce the overall footprint of the entire system.

Vesaro VR Headset - Quest 3

Virtual reality completely transforms our Vesaro racing simulators, by placing the user directly into the virtual car on the virtual track, or in the skies in a fighter jet aircraft.

Where the user looks is what they see, replicating real life, with fully built 3d environments and realistic textures.

This VR headset is set up, calibrated and integrated into the Vesaro system at Vesaro HQ. Optimal settings are chosen in conjunction with the associated PC, to ensure the best performance and graphical settings are achieved.

The Meta Quest 3 is one of the best VR headsets available for intuitive and easy use, even supporting a fully wireless linking mode, removing all cables tethering the user to the system, for an uninterrupted experience.

Includes :

128GB Quest 3 Headset

Quest 3 Elite Strap

Oculus Link Cable

Specs:

Resolution: 2064×2208px per eye

Supported Refresh Rate: 90Hz

Tracking: On-Board (Inside out body tracking)

Memory: 8GB total

Lens Distance: Adjustable - IPD Range 53-75mm

Passthrough capabilities

Vesaro Quad Motion V-Spec 6.0

Vesaro Quad Motion 6.0 Inches, powered by D-BOX, animates the Vesaro system with highly accurate and detailed movement and haptic feedback.

2 actuators positioned at the rear of the Vesaro chassis, and 2 actuators at front provide 6.0 inches of travel, for 3 degrees of freedom - pitch, roll and heave.

These actuators are powered by D-BOX Haptic Technology, electronically controlled and actuated for incredible reliability with zero maintenance required. D-BOX’s systems are the only FIA approved and licensed motion platforms available within the industry, recognised for their unparalleled level of detail and feedback that is of a standard suitable for professional driver training.

Quad actuator platform options offer the most true-to-life driver training capabilities, as each in-game car wheel is represented by an actuator. If the front right wheel rolls onto a rumble strip, the corresponding actuator will react independently. Flight simulators also benefit from 4 actuators, amplifying experienced effects such as turbulence.

A vast library of simulation titles are supported by D-BOX’s bespoke software. Each title has D-BOX software integration coded and calibrated individually, ensuring that the user experiences everything as the developer intended.

Vesaro calibrates and tests all software included on the Vesaro system at HQ, however, each simulation title can be tweaked and adjusted to the user’s preference with savable profiles. Pitch, roll, heave, engine vibrations, gear shifts, vehicle banking, vehicle suspension, vibration/motion, and global level are just several of the different options available for adjustment. With so many options available, individual car and track combinations can be created, for incredibly accurate driver training - or the user can have an entirely hands-off yet compelling experience using Vesaro’s premade profile.

The same is true for flight simulation titles offering a whole host of sliders, including turbulence and G-Force discomfort.

UPS Backup

A UPS (Uninterruptible Power Supply) allows a computer to be safely shut down in the event of a power failure, by sustaining power to the system for a short period of time. This avoids sudden PC shutdowns that could cause fatal errors on the system.

Additionally, UPS’ provide the entire system with clean constant power, ensuring that all components operate as intended with no unexpected variations in their performance.

Furthermore, it also serves as a surge protector, isolating components from potential overcurrent in the event of power failure.

Software - Personal Use - Assetto Corsa

Assetto Corsa Ultimate Edition (Private Use) delivers an unparalleled and comprehensive racing simulation experience on a Vesaro system, perfect for drivers honing their skills and enjoying countless hours of driving.

For users seeking the ultimate in private racing simulation, Assetto Corsa Ultimate Edition provides an incredibly vast and diverse platform for immersive driving and dedicated training on a Vesaro system.

Featuring a massive library of officially licensed cars, from iconic road cars to legendary racing machines, Assetto Corsa Ultimate Edition offers an unparalleled selection to suit every driving style. Combined with laser-scanned tracks from around the globe, users can experience an incredibly realistic and diverse range of driving environments on a Vesaro system.

Assetto Corsa Ultimate Edition is pre-installed, fully calibrated, and optimised for a Vesaro system, ensuring a seamless and high-performance experience right out of the box. Performance is guaranteed to meet a minimum of 60fps, dependent on the Vesaro PC specification, for smooth and fluid visuals.

Furthermore, Assetto Corsa's renowned modding community offers vast opportunities to expand the car and track collection even further, allowing users to continually customise and enhance their private racing experience, adding local tracks and owned vehicles to the Vesaro system

Wireless Keyboard and Mouse

A combined wireless-keyboard, including a mouse track pad with 2 dedicated mouse buttons and keyboard. Perfect for individual and commercial use. Operation of the entire simulator can be conducted from this single device, with a battery life of 18 months.
