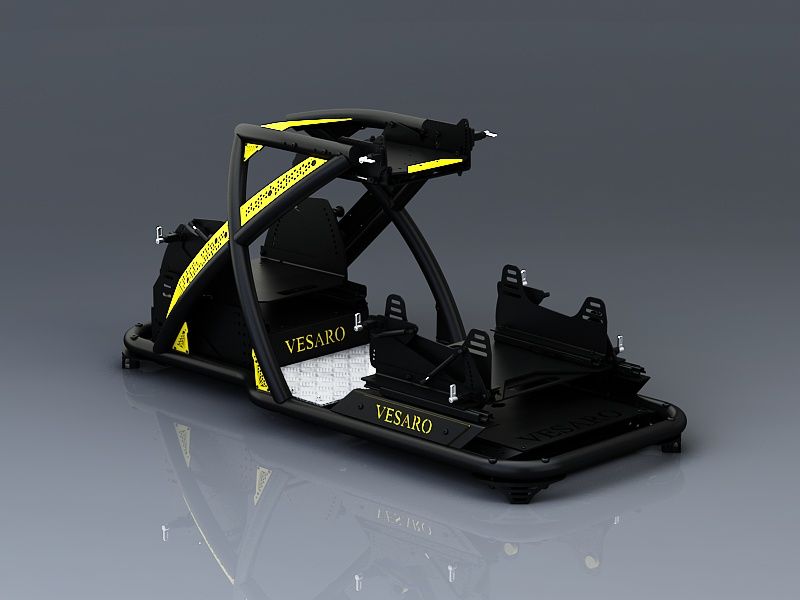

Vesaro X Chassis

The Vesaro X chassis is our latest evolution of the classic Vesaro I chassis.

Our Vesaro X chassis serves as an ultra strong-hand crafted centre core, designed to support an advanced modular upgrade system, allowing for thousands of possible combinations.

Starting with our dynamic chassis, the complexity of a Vesaro system can be altered over time, evolving with the needs and requirements of the user.

As a company, we believe that a simulator should last, and our manufacturing process is designed for just that.

The Vesaro X chassis is made from high-quality, ultra-durable mild steel, enabling us to confidently offer a 10 year warranty on all metal framework.

The central core rig is built with full motion capability in mind. This approach means that our starting static system can be upgraded to support full motion and a host of various controls and modules.

This Vesaro X offers multiple advancements over the Vesaro I chassis, greatly increasing its rigidity, versatility and overall functionality.

The distinctive Steering Deck support arms that form the shape of an X provide unwavering support for controls. Even when combined with our 6 Inch Haptic Feedback platform and the heaviest steering controls found in the industry, the Steering Deck will not shift under any use case scenarios.

The Steering Deck has quick-release adjustments, enabling the user to find the perfect steering wheel rim location by shifting the Steering Deck back and forth, and by manipulating the angle at which the Steering Deck sits with several fixed hole positions, all with hydraulic dampened assistance.

Furthermore, the evolved Steering Deck support arms greatly recess the ‘nose’ of our chassis, enabling the X chassis to be positioned much closer to the centre screen for greater immersion and FOV calibration.

The extensiveness of adjustment possible on the Vesaro X chassis continues on both the Pedal Deck and the Seat Sides. Every driving discipline’s seating position can be accomplished on the Vesaro X chassis, with hydraulically dampened assistance, for the user’s convenience.

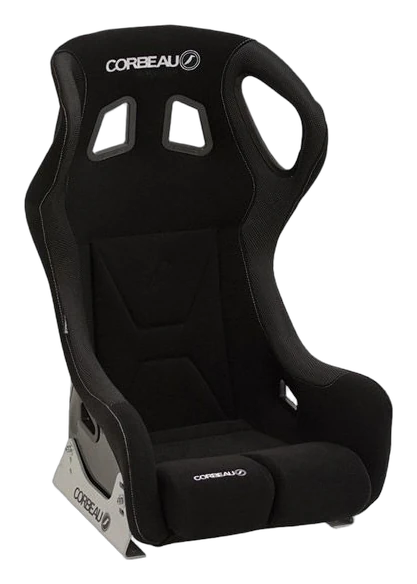

Corbeau Revolution X Racing Seat Excel

The Corbeau Revolution X XL is an ergonomically designed seat, providing exceptional lateral support and comfort, as well as head support, crucial for extended periods of virtual racing.

Used in the world of Motorsport, this seat is FIA approved and a great representation of powerful track cars, benefitting from the head support.

A seat should be strong and rigid in order to support the driver’s applied forces from braking, and any sustained G-Forces from motion. The Corbeau Revolution X XL is comprised of formed GRP, greatly reducing any form of flex, even under 100 + kg brake loading.

Supports a 34” + waist.

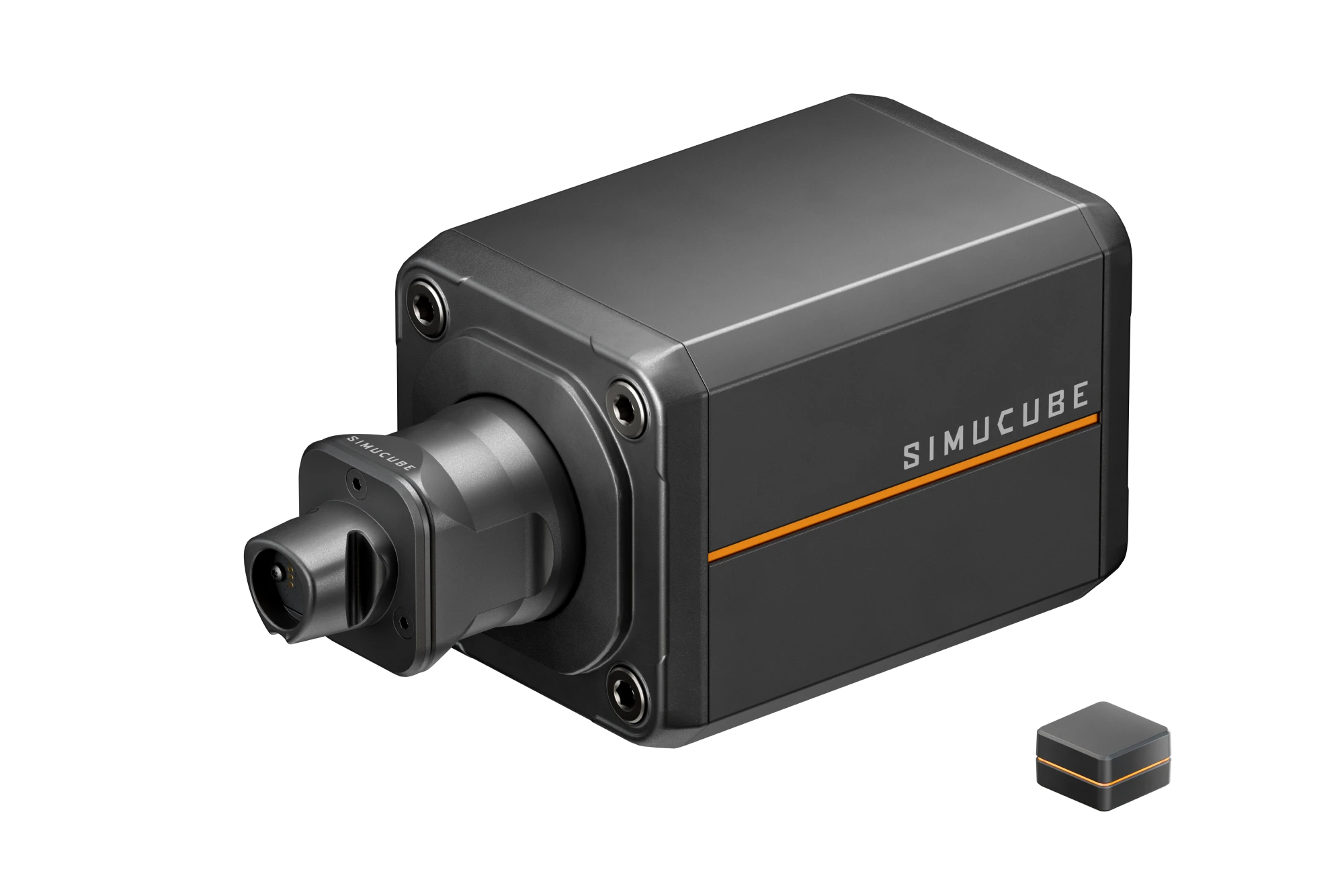

Pro Controls Wheel Base - Simucube 2 Sport

The Pro Controls Wheel Base - Simucube 2 Sport exemplifies performance, quality and reliability.

17 Nm of torque is produced by this wheel base, without a single hint of notchiness or rippling. This ultra smooth and consistent delivery of force feedback enables the user to train consistently on a Vesaro system, with full faith in the feelings and sensations that they are experiencing.

The build quality is second to none. Its rigid metal construction, expertly wired and grounded internals and finely CNCed quick-release system make this the perfect choice for private and commercial users alike.

The consistency and accuracy offered by the Simucube 2 Sport sets an incredible foundation for the included True Drive software.

Many effects and setting sliders are available to the user within the True Drive software, all of which can be finely adjusted to create near perfect representations of real vehicles. These can be saved to individually named profiles, which can be switched between in a matter of seconds, so that the user can have a dedicated profile for every vehicle they wish to train, in every scenario.

Vesaro configures all steering settings at HQ in a preset profile, so there is always a ready to use profile preloaded with our preferred settings, that work great with the Vesaro system.

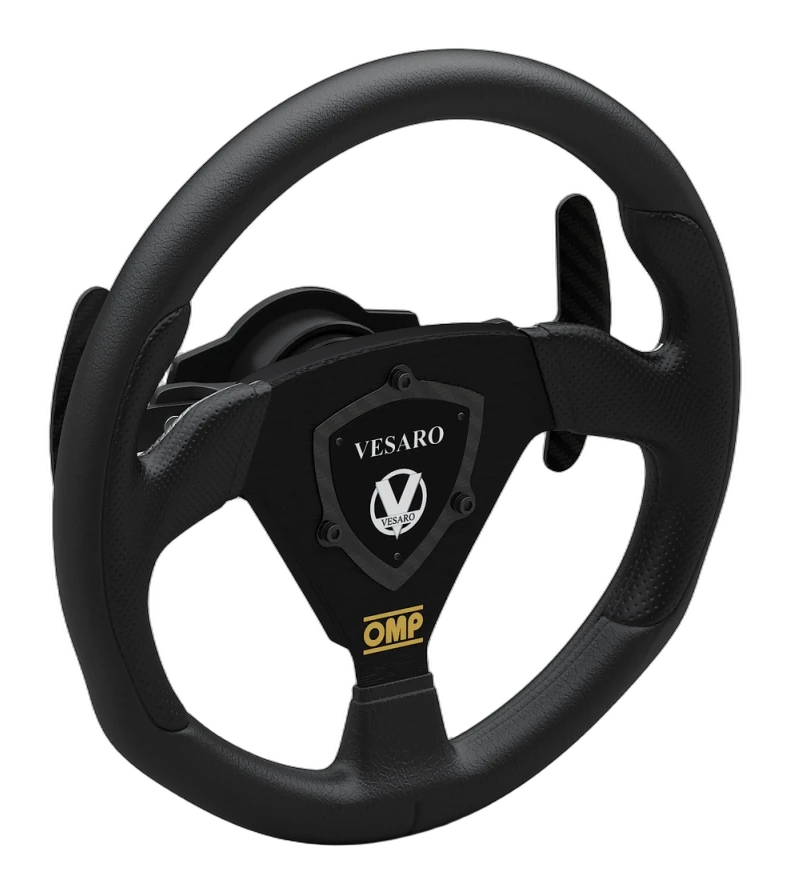

Pro Controls V-Spec GT Wheel

The Vesaro Pro Controls V-Spec GT Wheel is a robust and minimalist steering wheel designed for professional sim racing and commercial sim centers.

Constructed with a high-quality OMP racing rim and adhering to Pro Controls' renowned V-Spec quality, this wheel features a durable and ergonomic design, ideal for extended use from demanding users.

While primarily designed for simplicity, it does include 4 programmable buttons for essential functions or user preferences. This minimalist approach makes it perfect for sim centers and private users who do not want in-game distractions that are not necessary. This design also caters to users who would prefer to use our Vesaro Manager for more intuitive and expansive control configurations.

High-end carbon paddle shifters with magnetic switches deliver a precise and responsive gear-changing experience with exceptional durability and longevity.

Supplied with a quick-release attachment for prompt connection and disconnection from the Vesaro system.

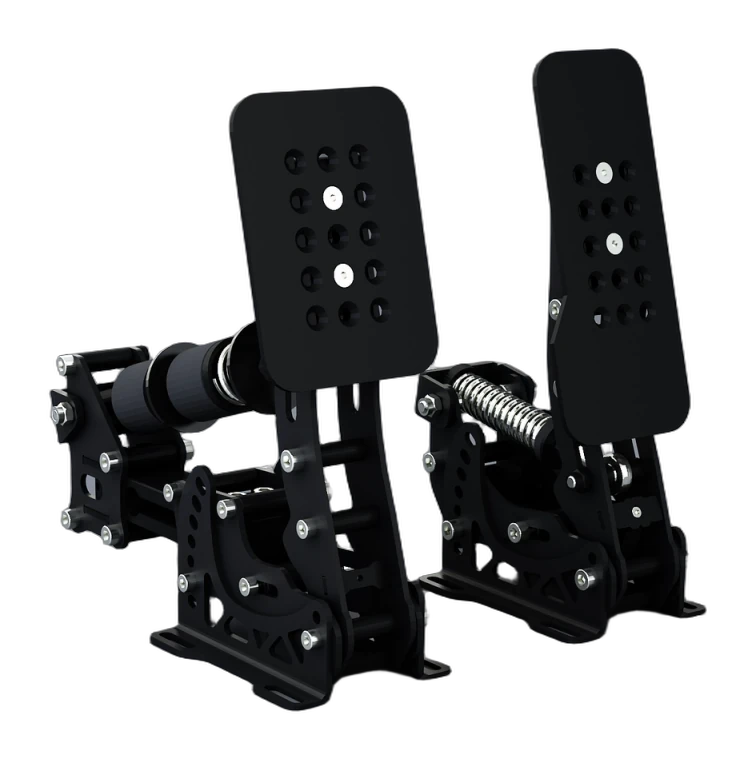

Vesaro Pro-R Pedals (2 Pedal System)

The Vesaro Pro-R Pedals (2 Pedal System) offer a fully adjustable, consistent and reliable racing experience.

Whether they will be used for demanding private racing, or intense commercial eSports, these pedals are more than capable of supporting various high-performance use-cases.

Produced from robust 3mm carbon steel construction, resulting in a durable and precise platform. The brake pedal features an 80Kg Load Cell with 24-Bit Resolution, ensuring highly accurate input translation, while the accelerator uses a Hall sensor with 10-Bit Resolution.

The accelerator offers adjustable sensitivity and pedal travel, providing customisable and consistent control.

The brake system utilises interchangeable Polyurethane Elastomers (90S, 80S, 70S) to adjust pedal stiffness, offering variable resistance and feel. Pedal travel is also adjustable.

Physical adjustments are extensive, with 14 adjustable angle positions and vertically and laterally adjustable foot pad positions, allowing for a highly personalised setup.

Furthermore, beyond the physical adjustments, pedal stiffness can be further refined by selecting between three different types of Polyurethane Elastomers, allowing users to tailor the resistance to their exact preference.

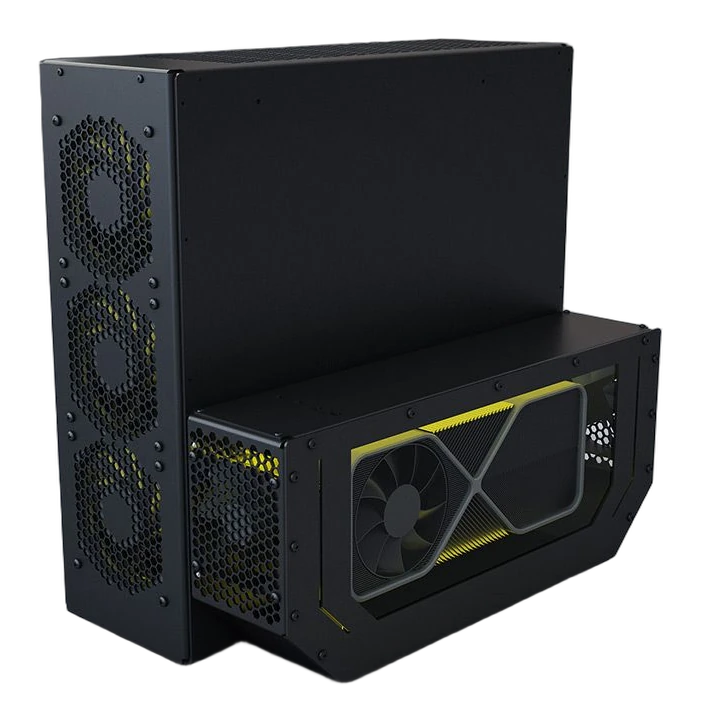

Vesaro PC Level 6 Dome - Spec HD

Our Vesaro PC Level 6 Dome is designed and produced in-house. We created this bespoke PC from the ground up to work natively with our Vesaro Dome.

This PC can support triple HD resolution on 3 x projectors, producing a 270 degree projection, whilst maintaining high graphical fidelity and animations.

Our Vesaro Level 6 Dome required more space in order to accommodate larger and more powerful GPUs, such as the Quadro RTX Ada 4500. We created a dedicated chamber to house the GPU and opted to have it as a display item at the rear of our Vesaro systems, showcasing the GPU with internal RGB lighting.

This PC is a must for those looking for top performance from multiple simulation titles in a triple projection configuration.

The Vesaro PC Level 6 Dome is fully configured from Vesaro HQ, with all compatible software for all included components on the system. This includes the projection mapping software. All systems are set to run at 60 FPS minimum.

No setup is required from the user. In any instance where setup is required due to software updates, our dedicated Vesaro Support Team can remote access the system (with prior permission) to completely fix or aid in resolving issues.

Specification:

Motherboard - Top Gaming Motherboard with Wifi

Processor - Intel Core i9 14900K or AMD Ryzen 7 9800X3D

AIO Water Cooler - 360mm radiator

64 GB RAM 5600MT/s DDR5

Power Supply - 1200W Gold (minimum)

Graphics Card - Quadro RTX Ada 4500

Storage - 1TB Gen 4 NVME Drive

Case - Vesaro X

Drivers installed & Configured for all included control systems

Control systems configured & setup for all included games/sims

Graphics optimised and tuned for optimum frame rate & quality for any included games/sims

Full image backup to an external Drive, allowing full software restore to the day the system was finalised

2 Year Parts & Labour RTB Warranty (Private Customers) 1 Year Parts & Labour RTB Warranty (Commercial Customers)

(PC Specs last updated 10/02/2025)

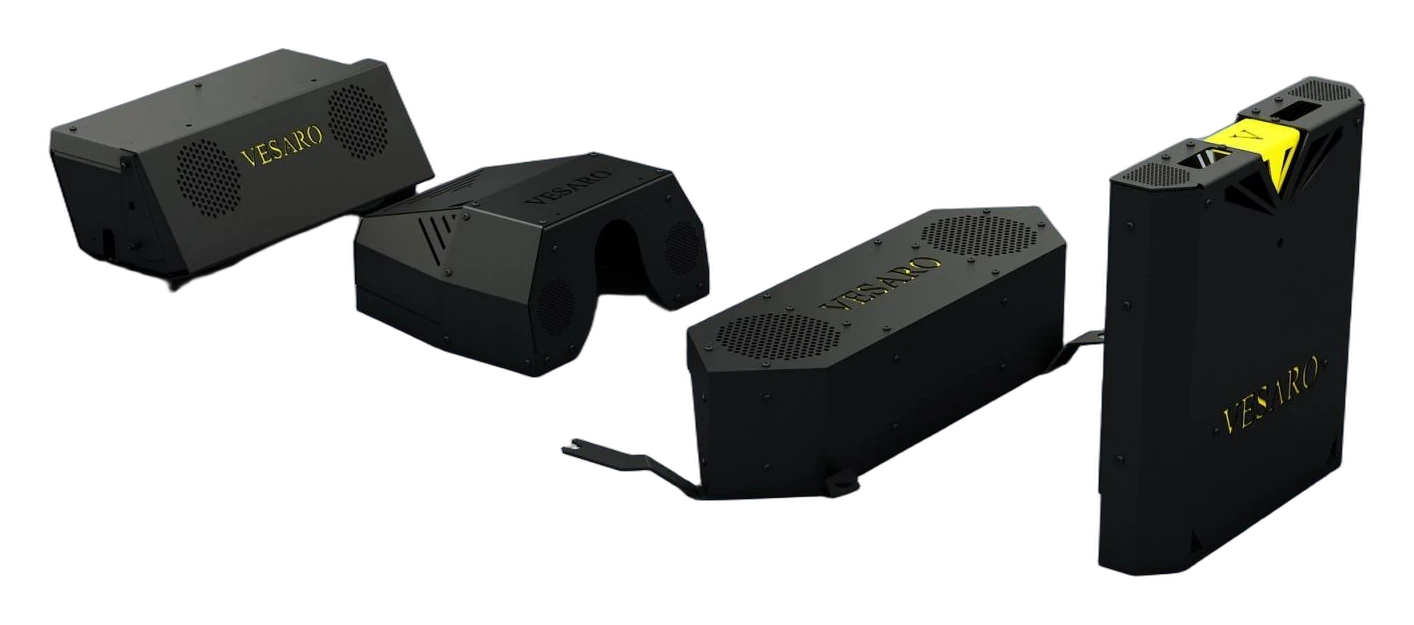

Vesaro Dome 8.1 Integrated Audio System

Our Vesaro Dome 8.1 Integrated Audio System is the ultimate sound solution for our Vesaro Dome.

8 satellite speakers are discretely incorporated into the Vesaro Dome body, alongside 2 crossovers, an Amplifier and all associated cabling.

4 midrange speakers and 4 tweeters comprise the satellite speakers. The midrange speakers handle all mid-range frequencies whilst the tweeters deliver all high frequencies. The tweeters range is achieved via 2 crossovers.

The low-profile subwoofer is positioned directly under the seat, maximising the output of all low frequencies to the user. The crossover is set at 80hz to reduce distortion.

By splitting the 3 frequency ranges between the 9 speakers, the best sound output achievable is accomplished, enabling the speakers to specialise in delivering the frequency bands they were designed for, with minimal distortion. Furthermore, we tune all audio to ensure that the frequency response is as flat and accurate as possible.

The Vesaro Dome 8.1 Integrated Audio System elevates the entire Vesaro experience, bringing one of the most important elements to racing and air combat to life.

Tweeter Speakers specification:

15 W RMS

30 W Peak

160hz to 20khz

Midrange Speakers specification:

40 W RMS

80 W Peak

48-4000hz

Crossover Specification:

2khz 2 way crossover

2nd order 12db/octave

Subwoofer specification:

160W Peak

30-160hz

2khz 2 way crossover per channel 65wpc RMS

110WPC PEAK

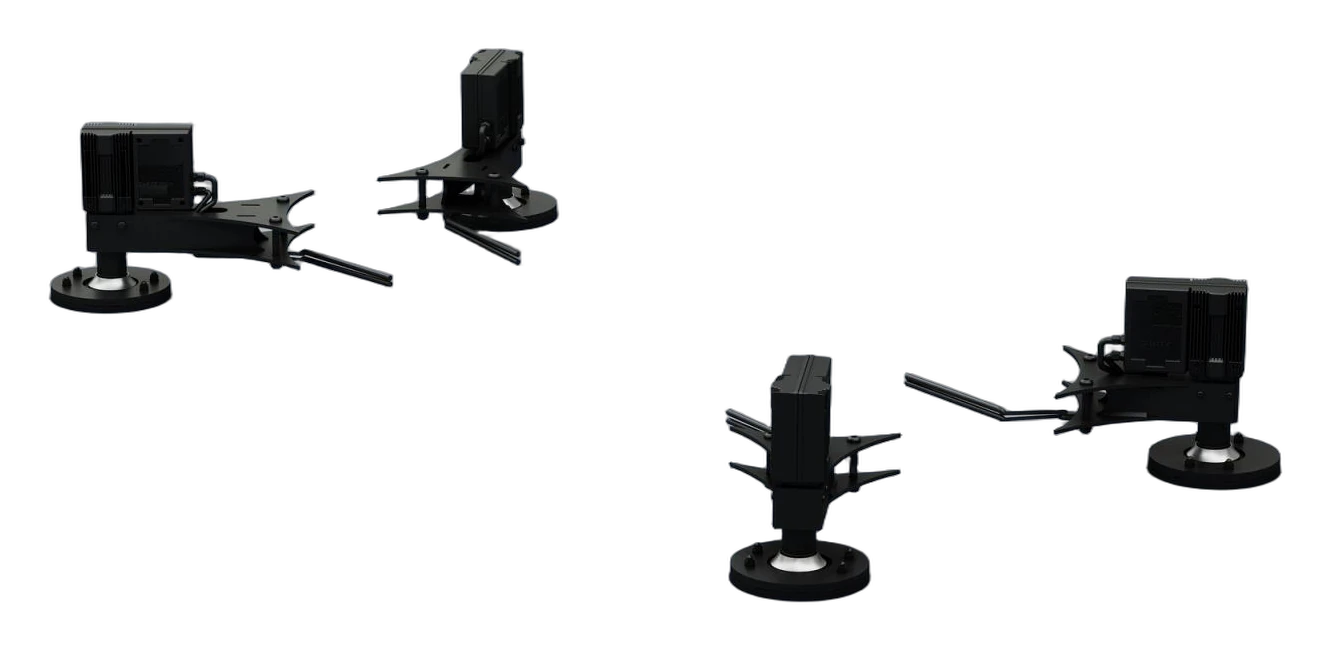

Vesaro Quad Motion 1.5

Vesaro Quad Motion 1.5 Inches, powered by D-BOX, animates the Vesaro system with highly accurate and detailed movement and haptic feedback.

2 actuators positioned at the rear of the Vesaro chassis, and 2 actuators at front provide 1.5 inches of travel, for 3 degrees of freedom - pitch, roll and heave.

These actuators are powered by D-BOX Haptic Technology, electronically controlled and actuated for incredible reliability with zero maintenance required. D-BOX’s systems are the only FIA approved and licensed motion platforms available within the industry, recognised for their unparalleled level of detail and feedback that is of a standard suitable for professional driver training.

Quad actuator platform options offer the most true-to-life driver training capabilities, as each in-game car wheel is represented by an actuator. If the front right wheel rolls onto a rumble strip, the corresponding actuator will react independently. Flight simulators also benefit from 4 actuators, amplifying experienced effects such as turbulence.

A vast library of simulation titles are supported by D-BOX’s bespoke software. Each title has D-BOX software integration coded and calibrated individually, ensuring that the user experiences everything as the developer intended.

Vesaro calibrates and tests all software included on the Vesaro system at HQ, however, each simulation title can be tweaked and adjusted to the user’s preference with savable profiles. Pitch, roll, heave, engine vibrations, gear shifts, vehicle banking, vehicle suspension, vibration/motion, and global level are just several of the different options available for adjustment. With so many options available, individual car and track combinations can be created, for incredibly accurate driver training - or the user can have an entirely hands-off yet compelling experience using Vesaro’s premade profile.

The same is true for flight simulation titles offering a whole host of sliders, including turbulence and G-Force discomfort.

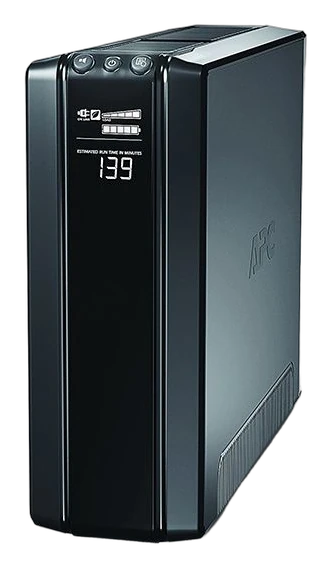

UPS Backup

A UPS (Uninterruptible Power Supply) allows a computer to be safely shut down in the event of a power failure, by sustaining power to the system for a short period of time. This avoids sudden PC shutdowns that could cause fatal errors on the system.

Additionally, UPS’ provide the entire system with clean constant power, ensuring that all components operate as intended with no unexpected variations in their performance.

Furthermore, it also serves as a surge protector, isolating components from potential overcurrent in the event of power failure.

Assetto Corsa - Commercial

Assetto Corsa Commercial provides a powerful and versatile racing simulation platform for commercial entertainment venues and professional driving experiences on Vesaro simulators.

For businesses seeking to offer engaging and realistic racing simulation to clients, Assetto Corsa Commercial provides a robust and adaptable platform for attracting and entertaining customers with high-fidelity motorsport experiences.

Featuring a massive library of officially licensed cars, from desirable road cars to thrilling racing machines, Assetto Corsa Commercial offers a wide selection to appeal to a broad audience. Combined with laser-scanned tracks from iconic locations worldwide, commercial venues can provide incredibly realistic and diverse racing environments on Vesaro simulators.

Assetto Corsa Commercial is pre-installed, fully calibrated, and optimised for Vesaro simulators, ensuring seamless integration into commercial setups and exceptional performance right out of the box. Performance is guaranteed to meet a minimum of 60fps, dependent on the Vesaro PC specification, delivering smooth and engaging visuals for commercial users.

Please note: Assetto Corsa Commercial is a one-time commercial license purchase per Vesaro simulator for all commercial and business use cases. This license unlocks features and permissions specifically designed for commercial and revenue-generating applications in entertainment and professional settings.

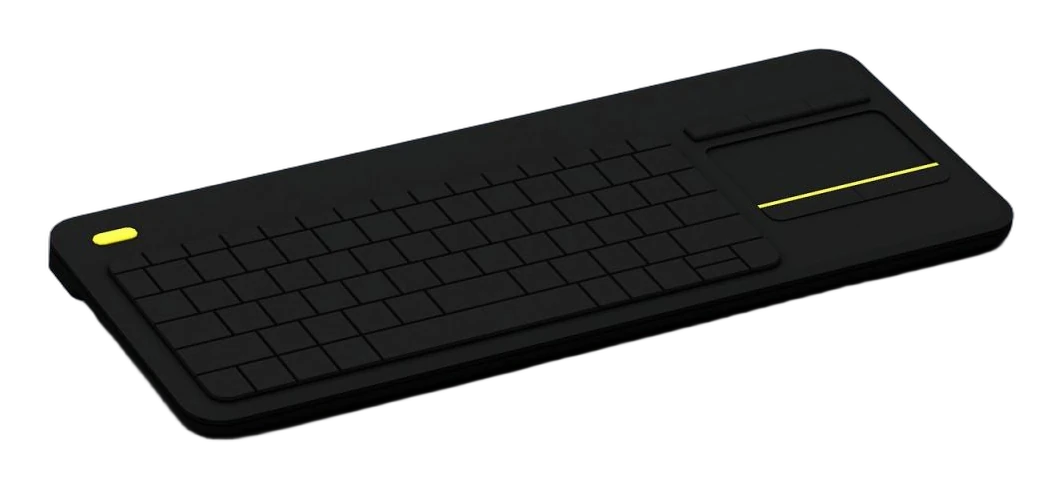

Wireless Keyboard and Mouse

A combined wireless-keyboard, including a mouse track pad with 2 dedicated mouse buttons and keyboard. Perfect for individual and commercial use. Operation of the entire simulator can be conducted from this single device, with a battery life of 18 months.

Dynamic LED Lighting Kit

Our Dynamic LED Lighting Kit is discretely integrated on the underside of the Vesaro chassis, providing an ambient underglow in a colour of the user’s choice.
